LIGHTWEIGHT OIL STORAGE TANK
LIGHTWEIGHT OIL STORAGE TANK

LIGHTWEIGHT OIL STORAGE TANKDownload Catalog

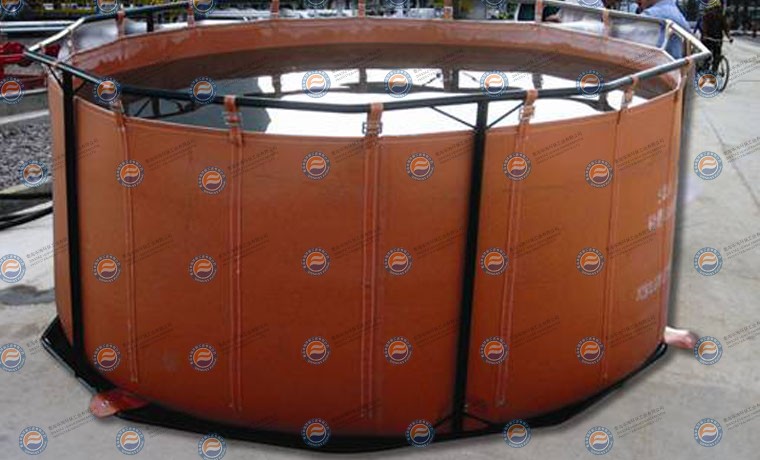

The tank’s body is formed with the thermal-bonded polyester canvas coated with PVC resins on its sides. It is well resistant to weather, oil, acids and alkali. It has high strength and a long service life. The upper opening of the tank body is provided with multiple PVC double-layer thermally bonded power bands, which are fixed on the special bracket with special fastening buckle. The special support is divided into three parts, i.e. upper frame, lower frame, column, etc. It can be quickly assembled on site, and the operation is very convenient.

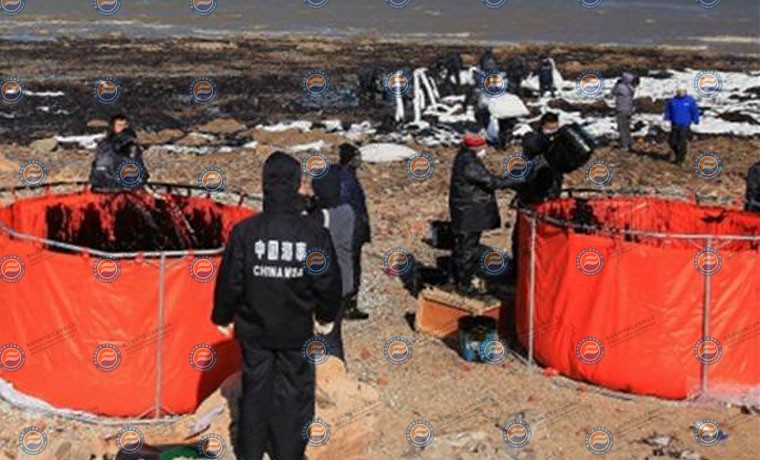

It generally used in field operations, and the storage tank is suitable for occasions where transportation conditions are limited and rapid arrangement is required. It can be used for temporary storage of oil on board ships as well as on shore.


Technical?Specification

   Model



Parameter

QG-V2

QG-V3

QG-V5

QG-V8

QG-V10

Storage Volume(m3)

2m3

3m3

5m3

8m3

10m3

Dimensionsmm

1600×1280

1900×1380

2400×1380

2700×1380

3400×1380


Note: The technical data are subject to change without notice due to modifications to the product and shall be confirmed by the manufacturer and customer.
